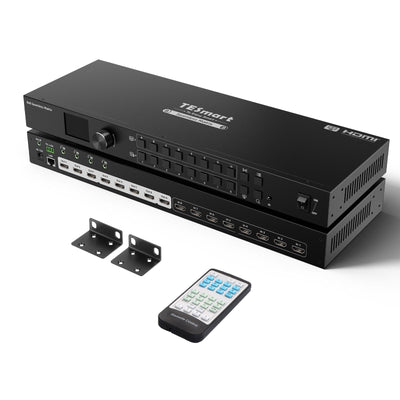

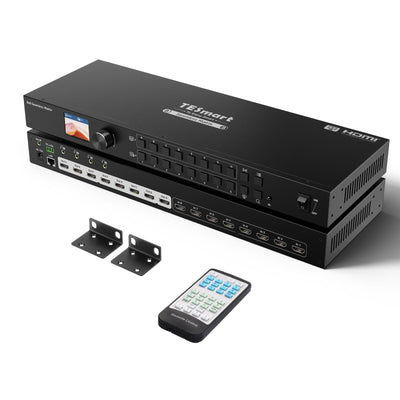

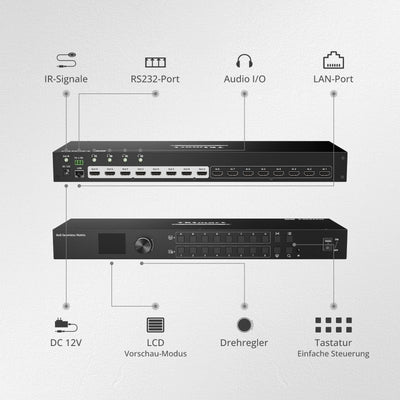

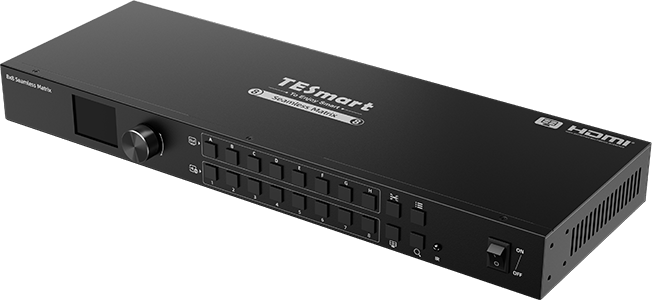

8×8 HDMI matrix | 1080p60, seamless switching & quad view
Flexibly connect eight HDMI sources and eight displays - with seamless full-screen switching up to 1080p60, quad view, LCD preview and four separate audio outputs.
Signalzuweisung
Max. Auflösung
Monitorsteuerung
Videosignale umschalten
Anzeigemodus
Live-Vorschau
Audiozuweisung
8×8 HDMI matrix | 1080p60, seamless switching & quad view
Why HMA808-ES23?
Overview
01

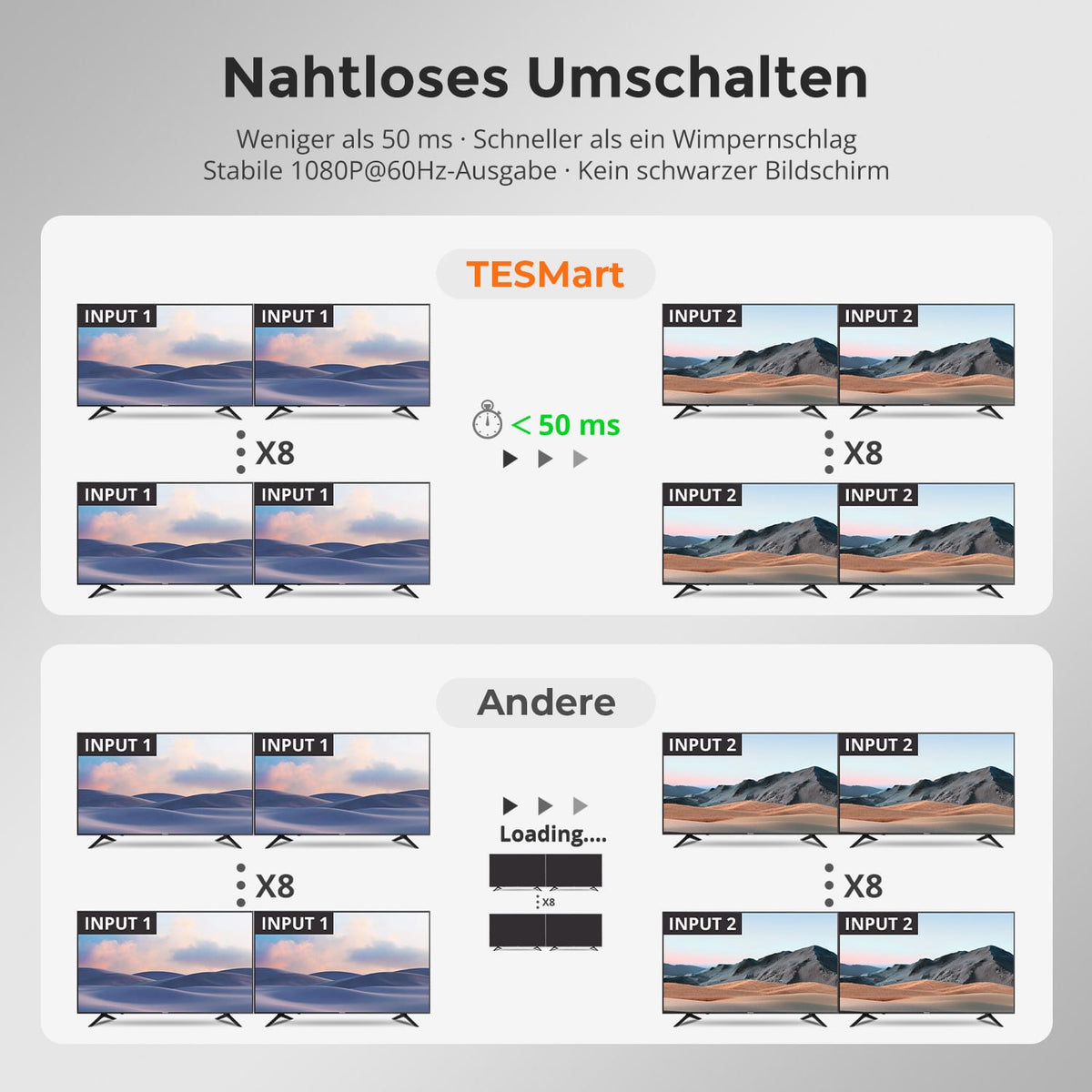

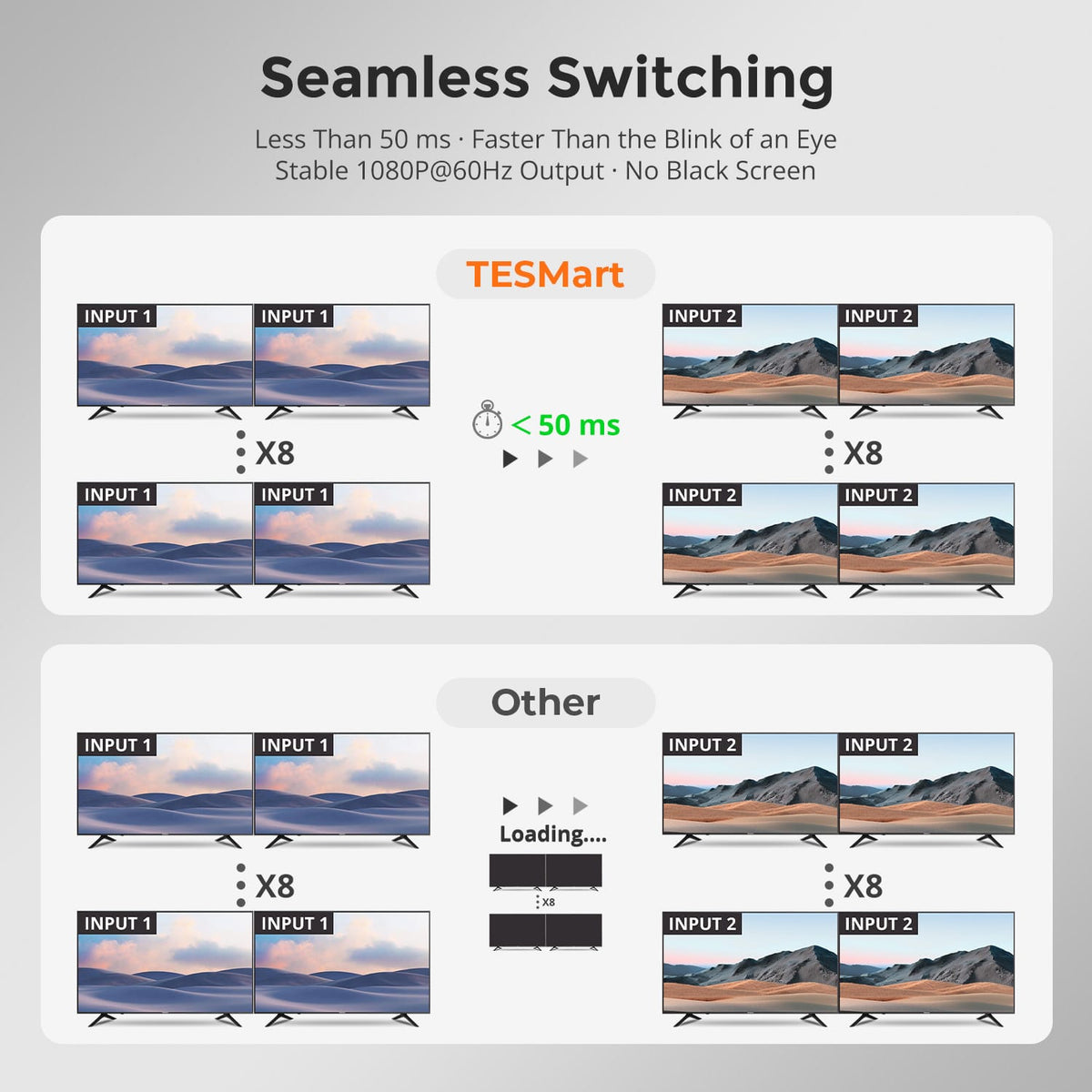

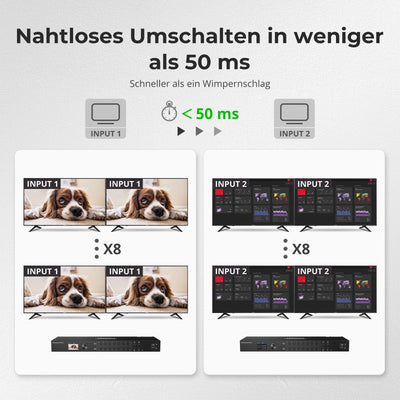

Switching in less than 50 ms
HMA808-ES23 switches sources in under 50 ms with stable 1080p@60Hz-Ausgabe – for fewer black screens and delays in conference rooms, control rooms and multi-display setups.
02
Call up your own scenes at the touch of a button

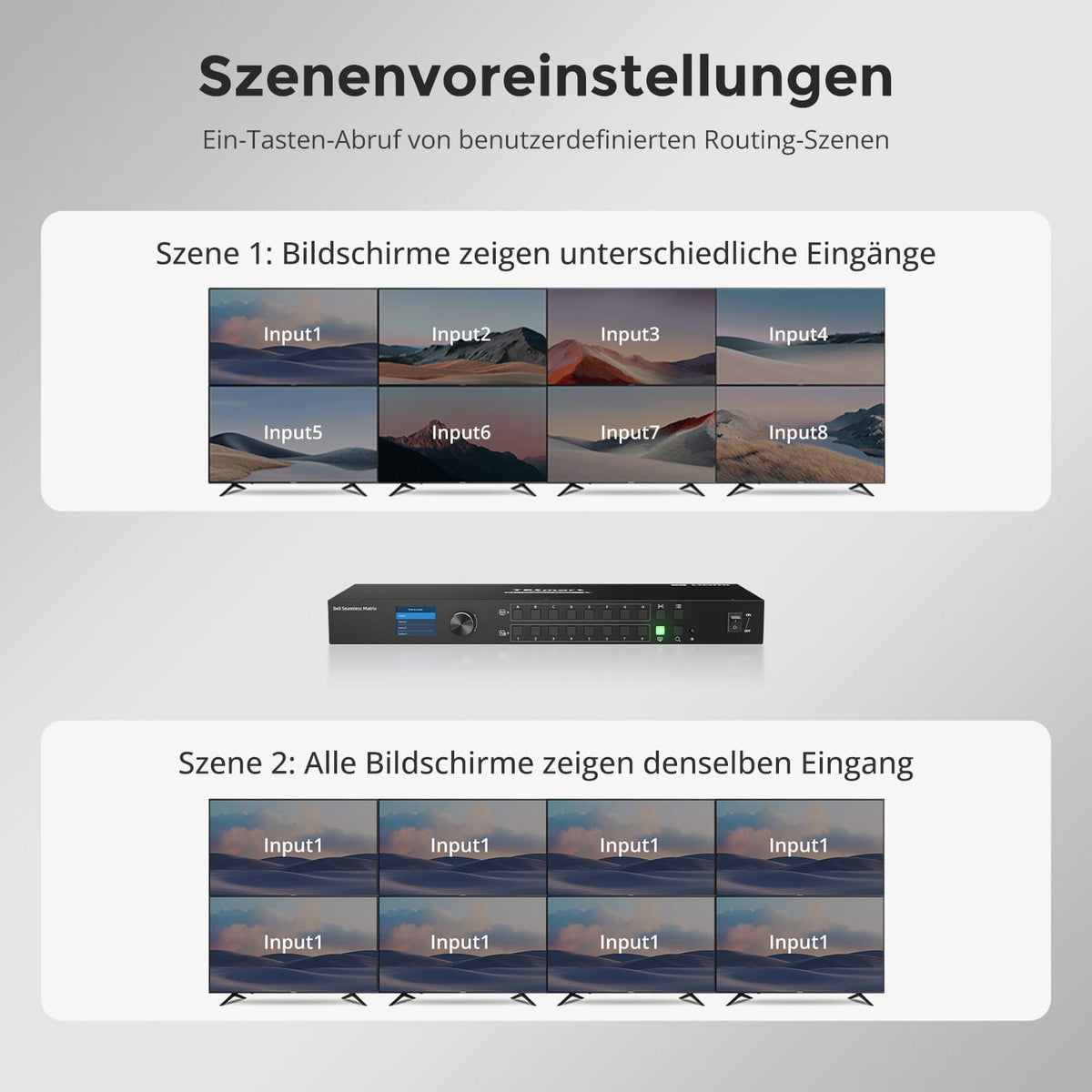

Save frequently used 8x8 mappings and recall them directly. Switch between different sources per display and the same source on all displays.
03
Check all inputs and outputs directly on the device

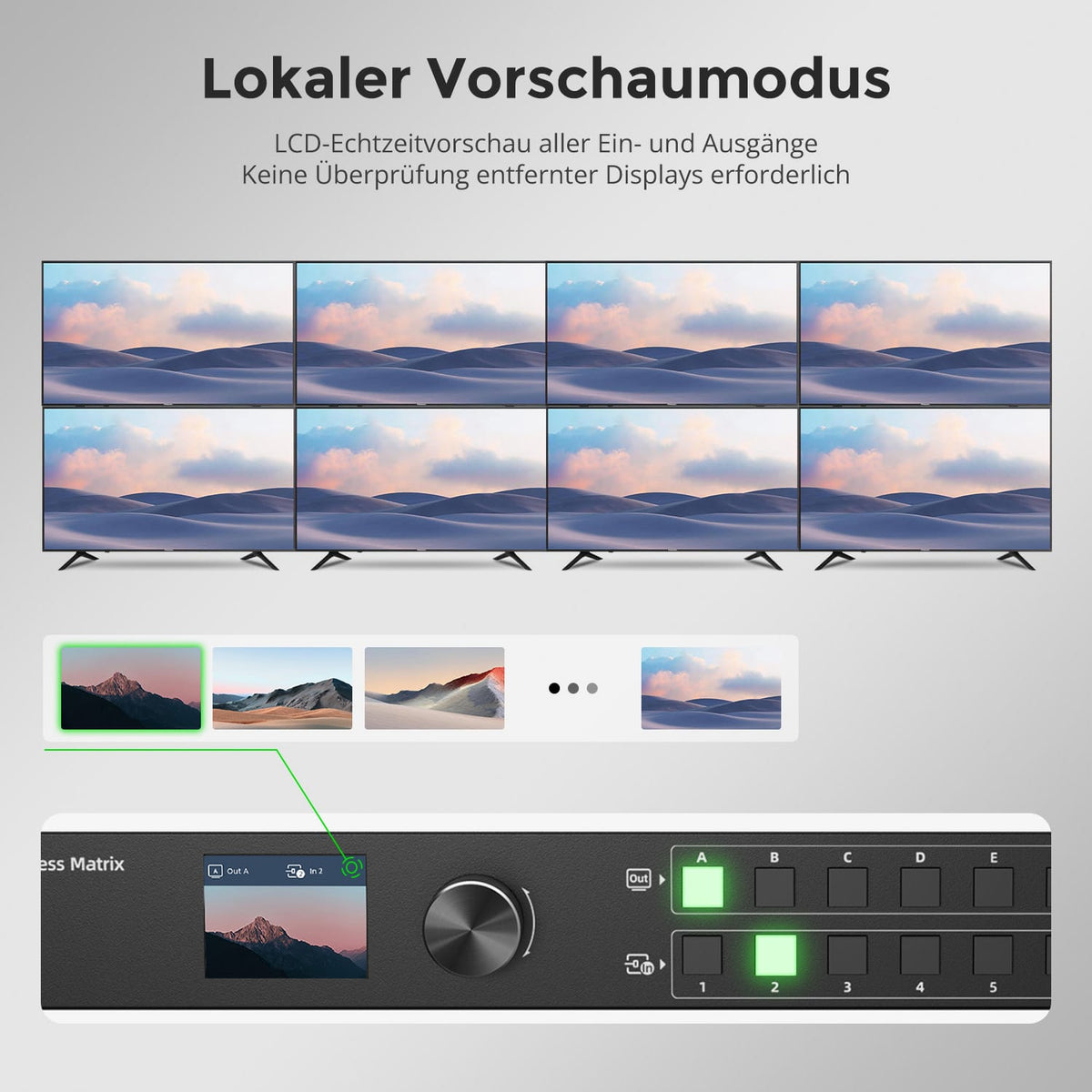

The integrated LCD displays signals in real time. Check the routing status without having to check each remote display individually.
04
Assignments at a glance

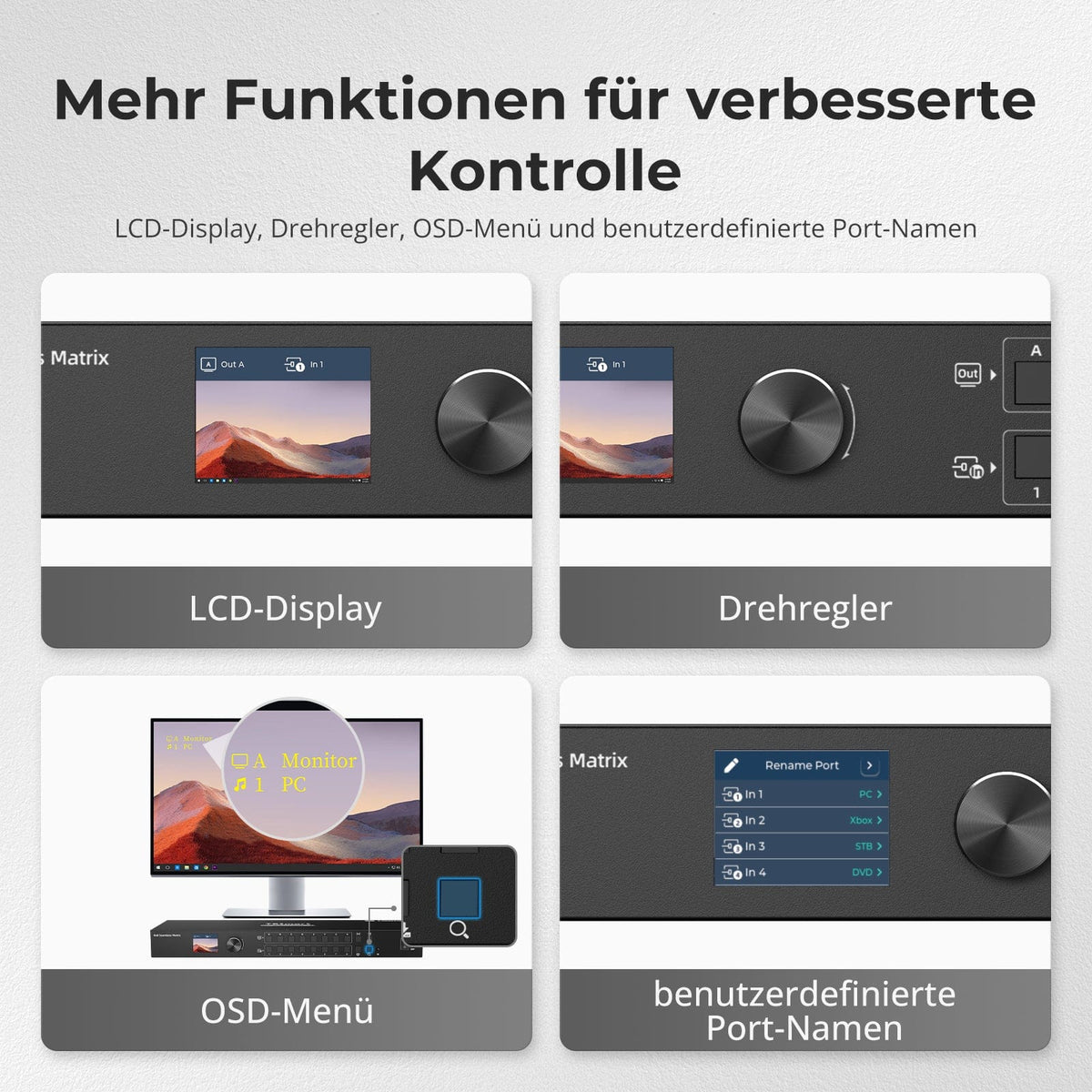

Name ports, check the device status, and query routing information via the OSD. The HMA808-ES23 simplifies the management of complex input/output assignments.
05
Five flexible ways to switch

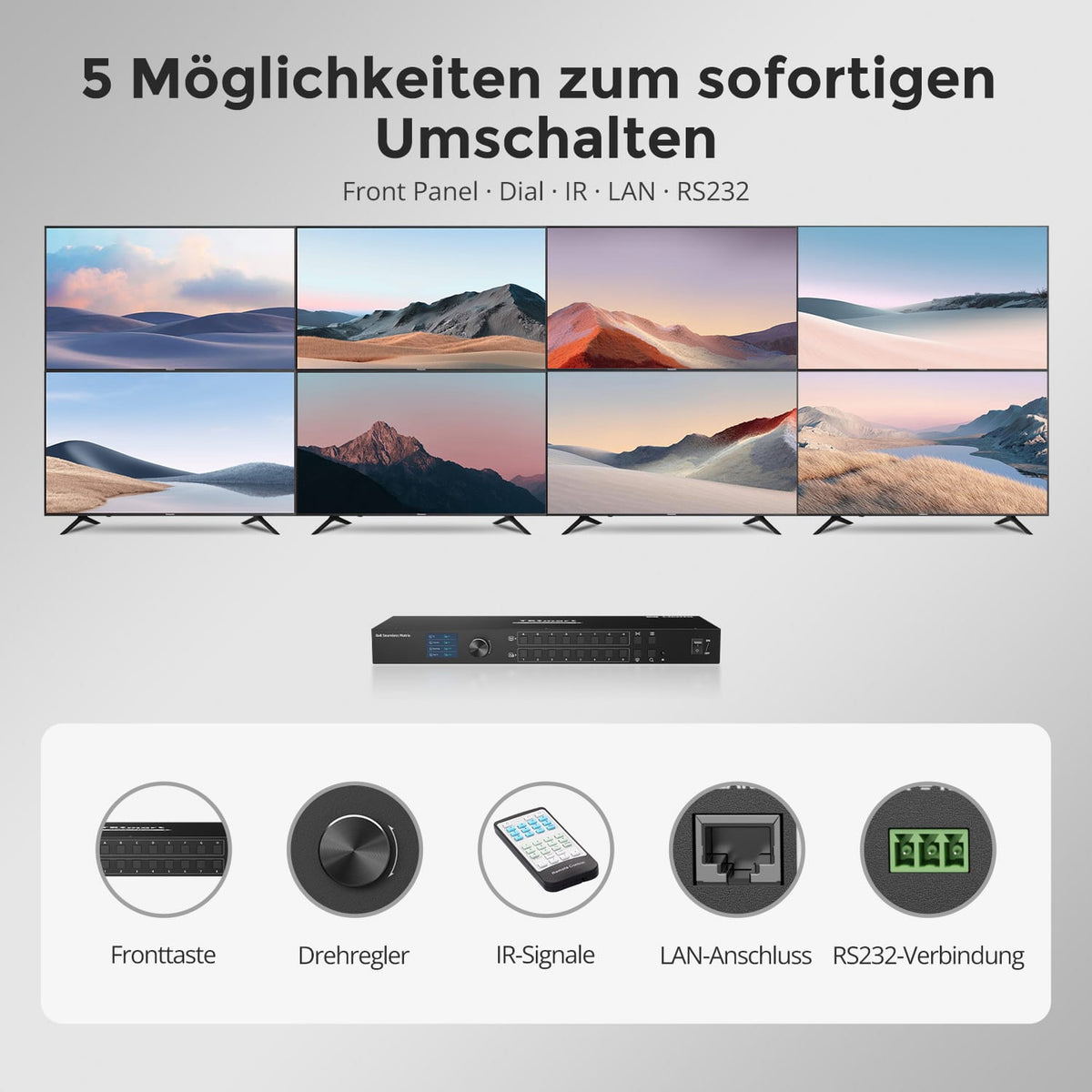

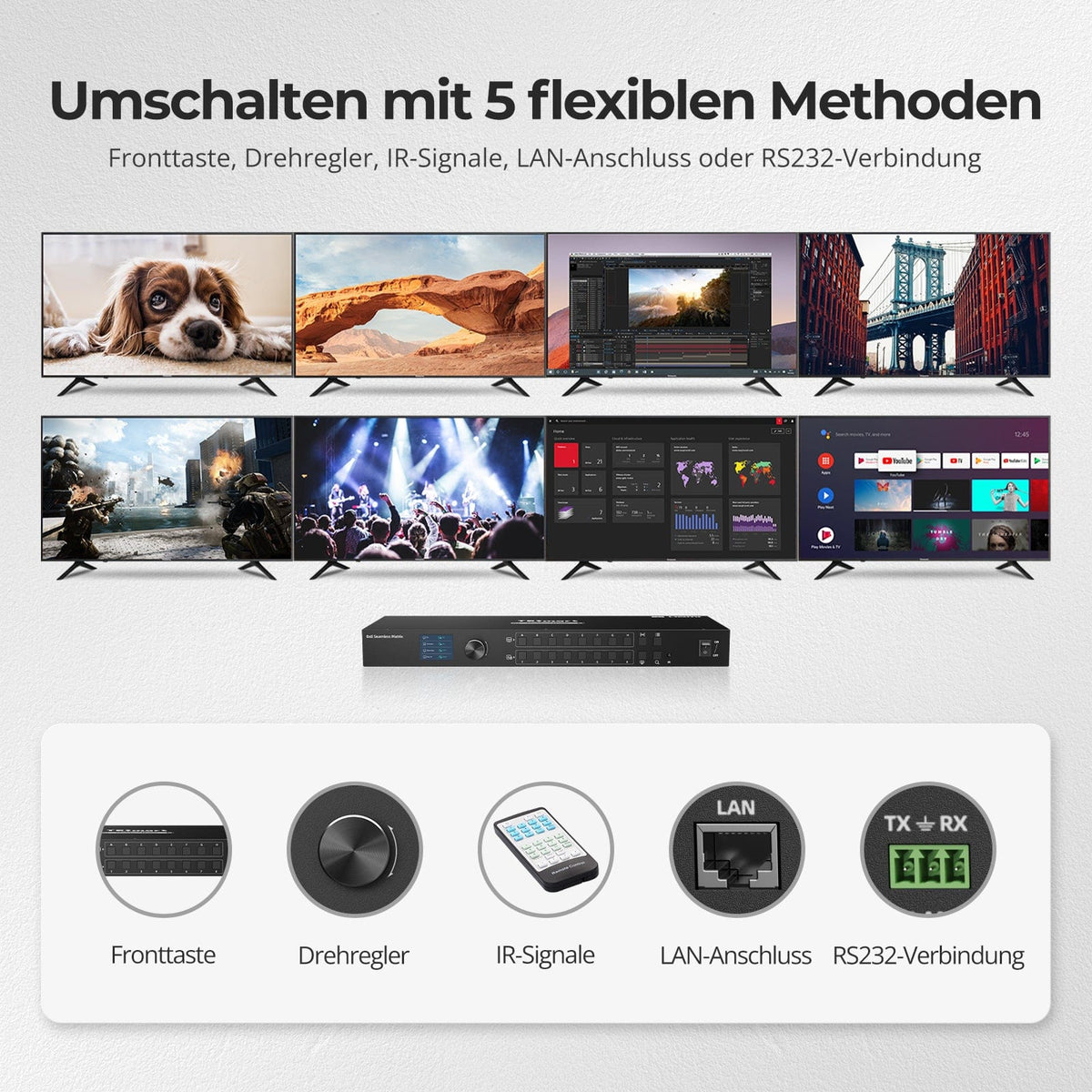

The HMA808-ES23 offers a control panel, rotary controls, IR, LAN and RS232 – for local operation and professional AV or automation systems.
06

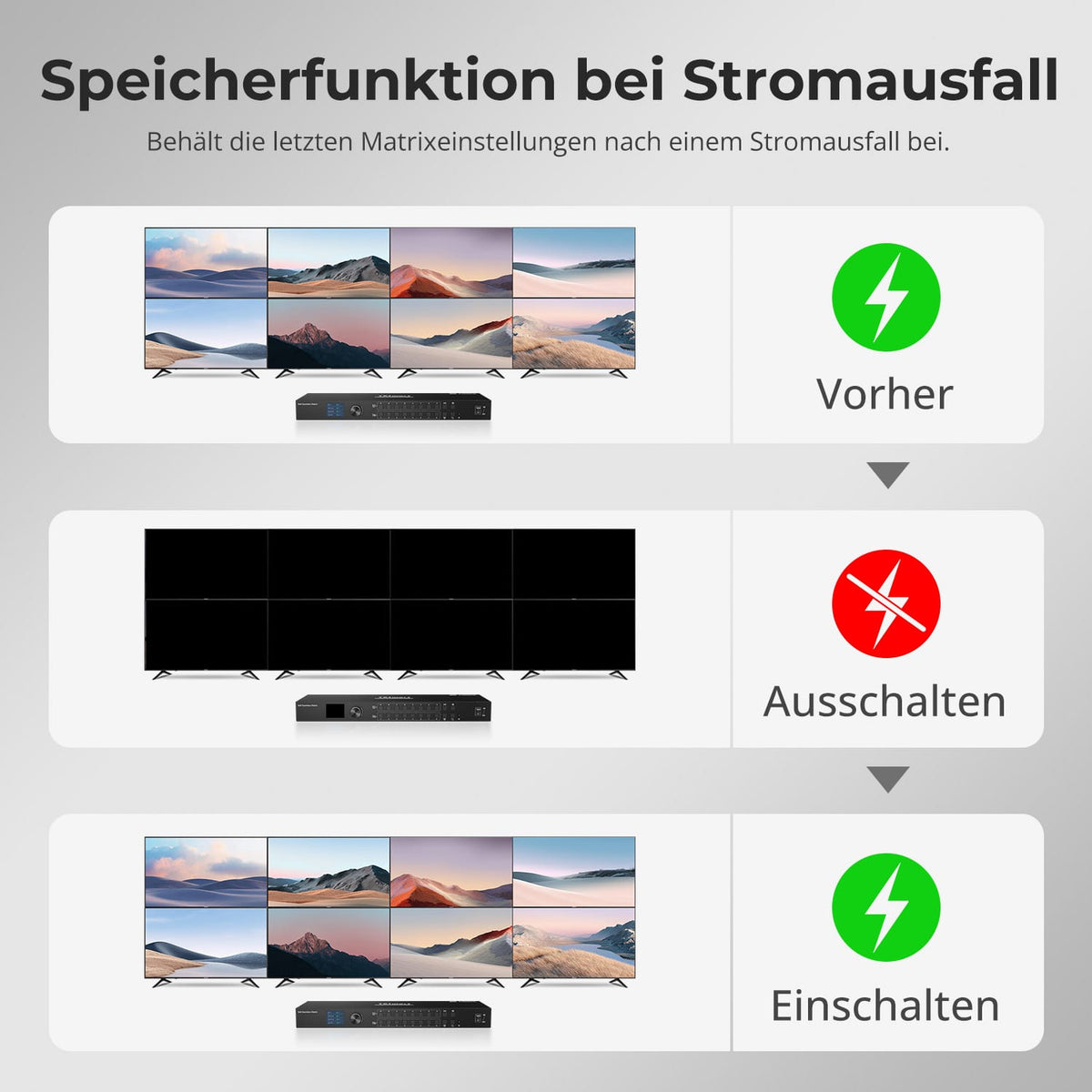

Automatically restore last setup
The HMA808-ES23 saves the last state even in the event of a power failure and automatically restores it when switched on.
07

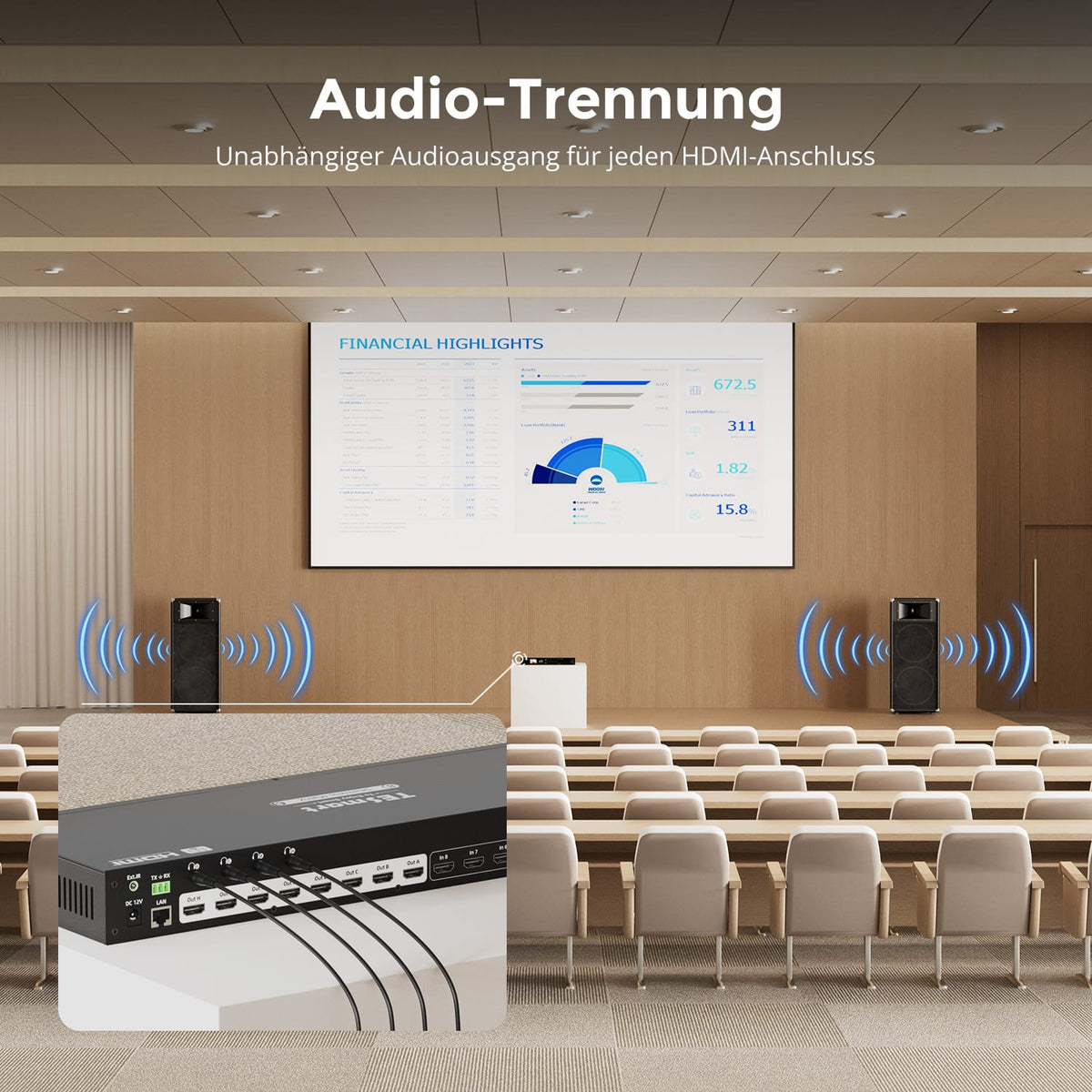

Four separate audio outputs

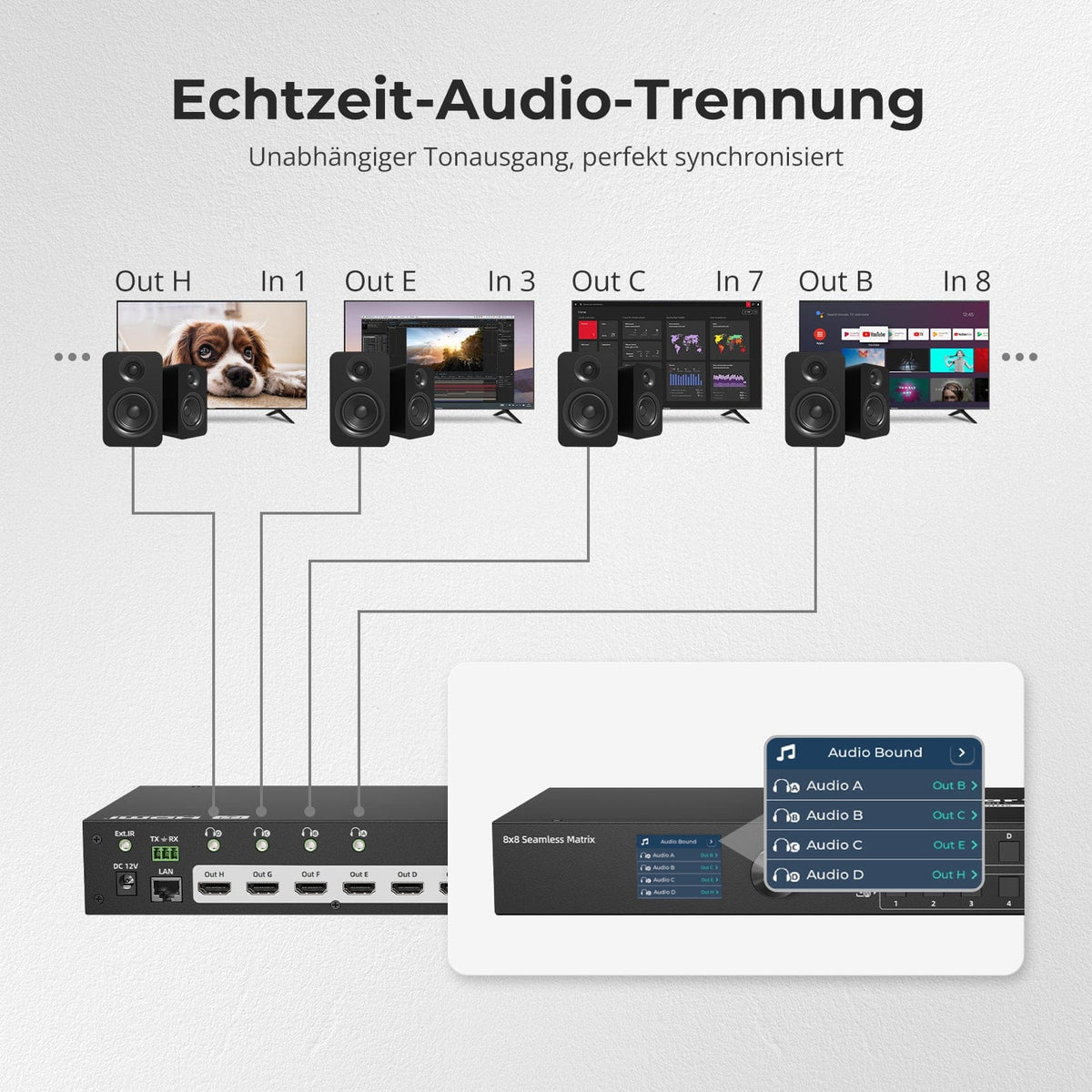

Outputs E–H each have four separate analog L/R audio connections. Select the audio channel to match the display area – also for quad-view mode.
Switching in less than 50 ms
HMA808-ES23 switches sources in under 50 ms with stable 1080p@60Hz-Ausgabe – for fewer black screens and delays in conference rooms, control rooms and multi-display setups.
Call up your own scenes at the touch of a button
Save frequently used 8x8 mappings and recall them directly. Switch between different sources per display and the same source on all displays.
Check all inputs and outputs directly on the device
The integrated LCD displays signals in real time. Check the routing status without having to check each remote display individually.
Data & Support
Compatibility & Connections
Technical data
Instructions & Downloads
Scope of delivery

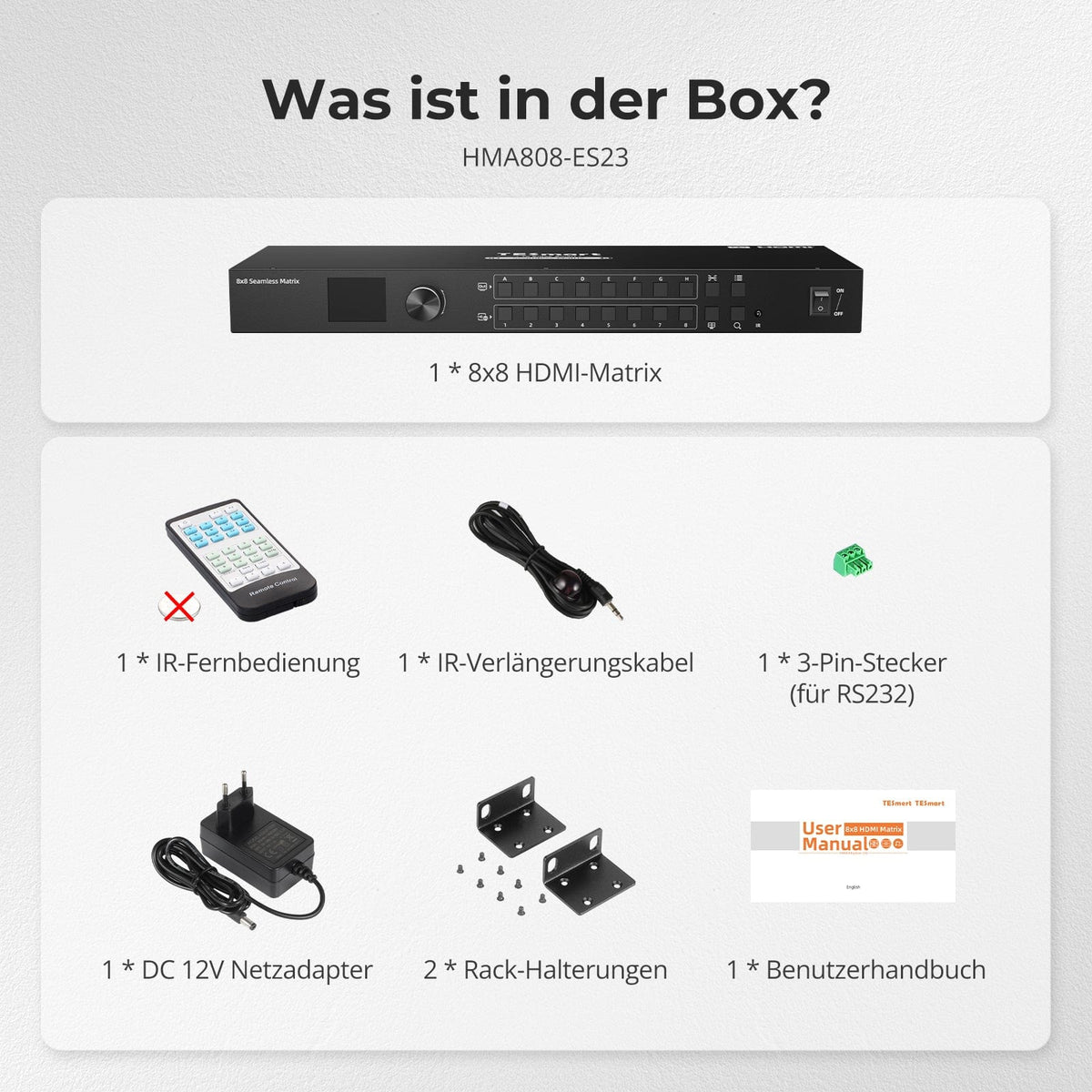

1×8×8 HDMI matrix
1 × IR Extension Cable
1 × IR Remote Control
1 × 3-pin RS232 connector
2 × Rack Angle
1 × 12V DC power supply

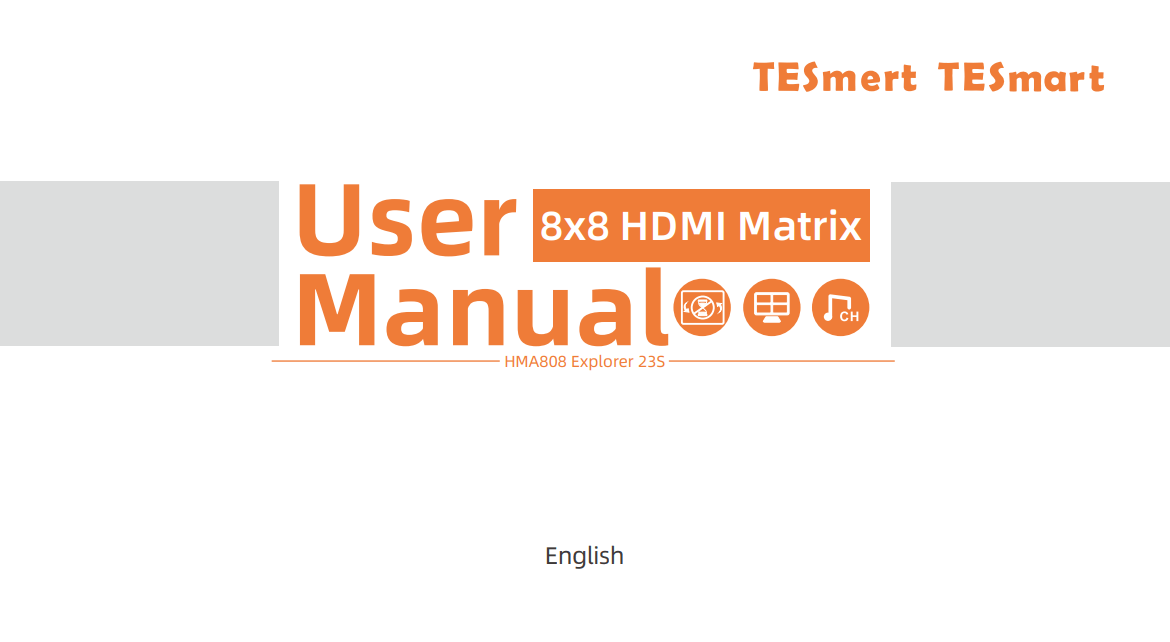

1×User manual
Frequently asked questions
You can find further answers in our Help Center.
[Compatibility] Which sources and displays does the HMA808-ES23 support?
Up to eight HDMI sources and eight displays, including computers, consoles, streaming boxes, televisions, monitors and projectors.
[Compatibility] What is the maximum supported resolution?
The HMA808-ES23 supports resolutions up to 1920×1080 at 60 Hz. The source and display must be set within this limit.
[Compatibility] Is the HMA808-ES23 a KVM switch?
No. It distributes HDMI video and audio, not USB keyboard, mouse, or other USB devices.
[Compatibility] Is the video transmission latency-free?
No. Seamless full-screen switching prevents black screens, but introduces latency due to video processing. Frame-perfect synchronization with the source display is not supported.
[Compatibility] Do I need Windows?
Not for control panel, rotary knob and IR. The matrix controller software for PC control via LAN/RS232 is for Windows.
[Functions] Can each monitor display a different source?
Yes. Each of the eight outputs independently selects an input. One source can also supply multiple or all displays.
[Functions] How does Quad View work?
One output combines inputs 1–4 or 5–8 to display four images. Use Quad View on one or all outputs and select the audio source for the quad view.
[Functions] What does seamless switching mean?
Fullscreen sources can be switched without a black screen while waiting for the new image. Seamless switching applies to fullscreen.
[Connections] How do the independent audio outputs work?
Four analog L/R outputs reproduce audio from selected output channels. The audio source can be changed, even in Quad View mode, on the corresponding display.
[Functions] What does the LCD on the device show?
The LCD displays a preview of the inputs, the outputs, or both sequentially. It also shows the signal mapping, allowing you to check the connections directly on the matrix.
[Functions] Can I save associations?
Matrix and IR support four scene memories, Windows Matrix Controller up to eight presets. The previous state is restored after power-off.
[Furnishings] Which cables do I need?
HDMI connection for each source and display, plus the included 12V power supply. HDMI cables are not included. Use the IR extension cable if the integrated receiver is difficult to reach.
[Switch] How do I change HDMI assignments?
Via input/output buttons, rotary controls, IR, Windows Matrix Controller via LAN or RS232 from the control terminal.
[Furnishings] What are the standard LAN/RS232 values?
LAN IP 192.168.1.10, TCP port 5000, gateway 192.168.1.1, subnet mask 255.255.255.0. RS232: 9600 bit/s, 8 data bits, 1 stop bit, no parity.
