HKE0511A10-EUBK

HDMI KVM-extender 1080P 60Hz 50m met CAT5e/6

€43,99
€83,99
€43,99
inkl. MwSt. Versand wird beim Checkout berechnet

  • Ongecomprimeerde en stabiele 1920*1080@60Hz FHD-video-extensie: automatische intelligente versterkingsregeling om de signaalsterkte aan te passen voor stabiele video-overdracht binnen 50 meter.

  • IR pass-through: Met de IR pass kan de speler op afstand worden bediend aan de ontvangende kant via LAN.

  • EDID-doorvoer: met EDID-doorvoer via LAN, voor de beste compatibiliteit met de meeste weergaveapparaten.

  • ESD-bescherming: ondersteunt ±8kV (luchtspleetontlading) ESD-bescherming om uw apparaat te beschermen.

Stekkertype

CHECK IF THE PRODUCT'S PORTS MATCH YOUR DEVICE.
    TESmart.DE
    TESmart HKE0511A10-EUBK HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart EU Plug
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart
    TESmart HDMI/VGA/USB Extender HDMI KVM Extender 1080P 60Hz 50m mit CAT5e/6 HDMI KVM+IR Extender bis zu 50m 1080P 60Hz über CAT6/CAT5 -TESmart

    Tech Specs

    Description

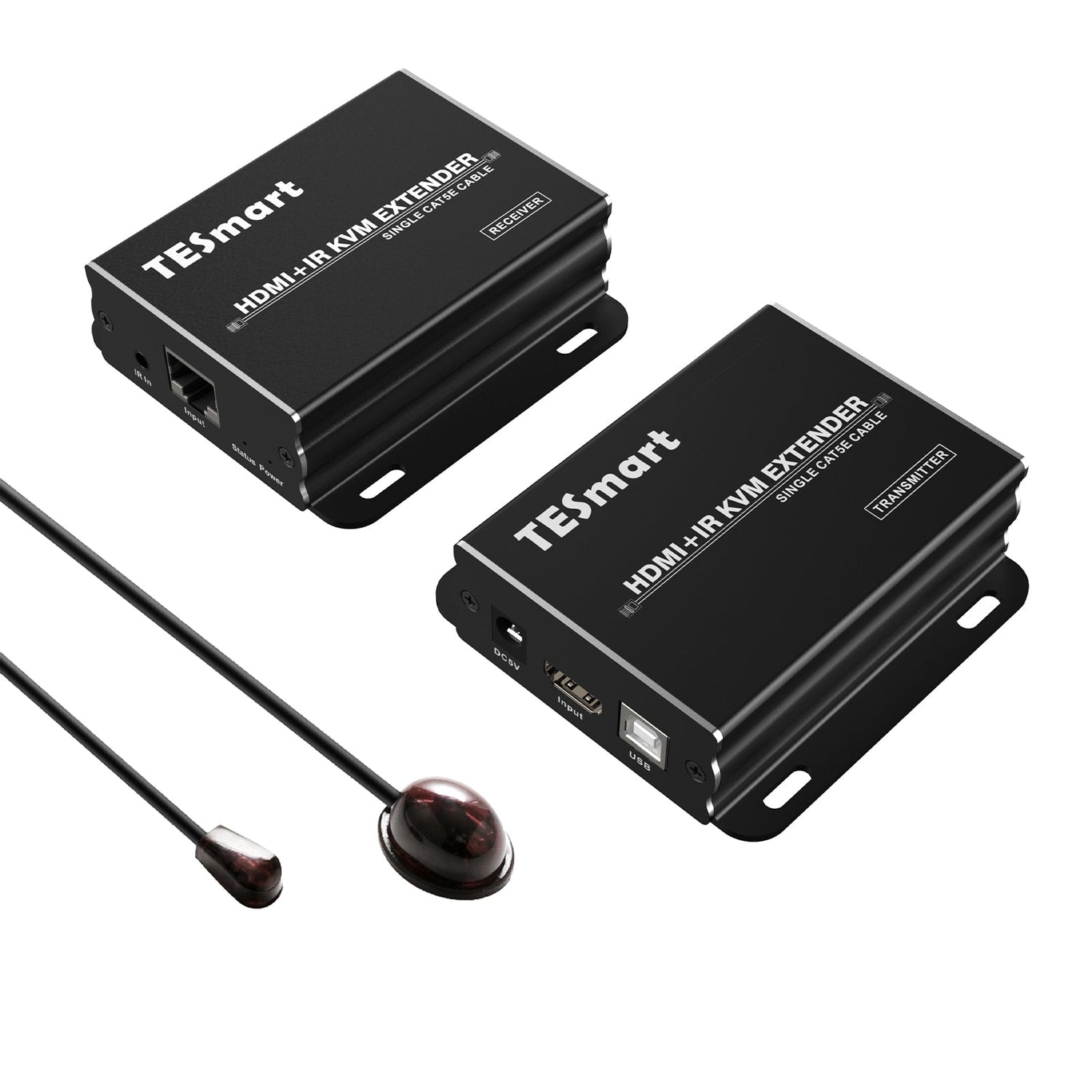

    HDMI KVM Extender with IR pass through, uses single UTP LAN cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance, The transmission distance extend up to 50 meters for 1920*1080@60Hz. Support EDID pass through, best compliant with different display devices. In the same time, this extender can support infrared control signal pass through.

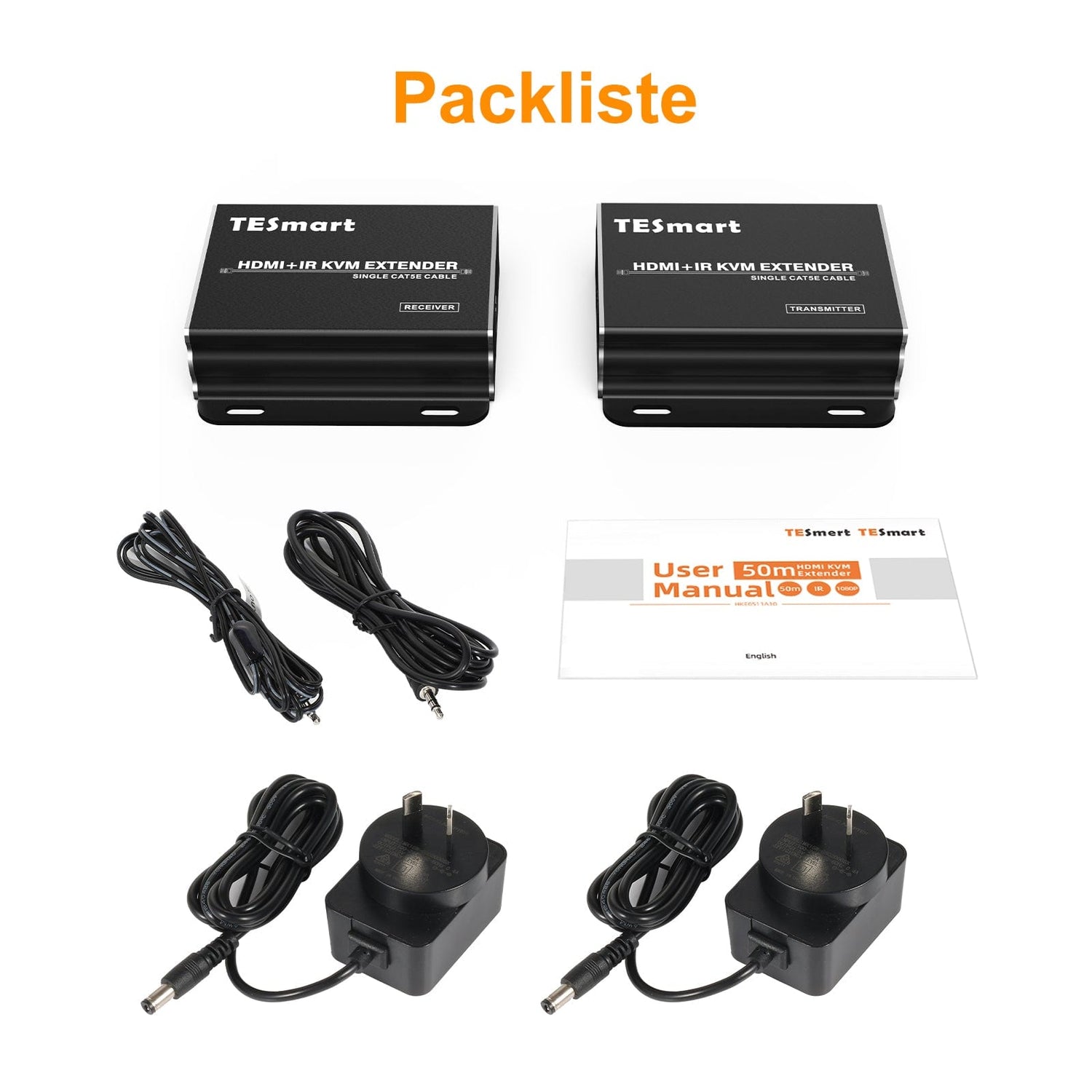

    Packing List
    • 1* Transmitter
    • 1* Receiver
    • 1* IR Transmitter
    • 1* IR Receiver
    • 2* DC 5V Power Adapter
    • 1* User Manual
    Key Features
    • Use single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute HDMI cable to extend longer transmission distance.
    • Support 1080P 60Hz resolution transmission via UTP cable up to 50 meters.
    • Support EDID pass through via LAN, for best compliance with most display devices.

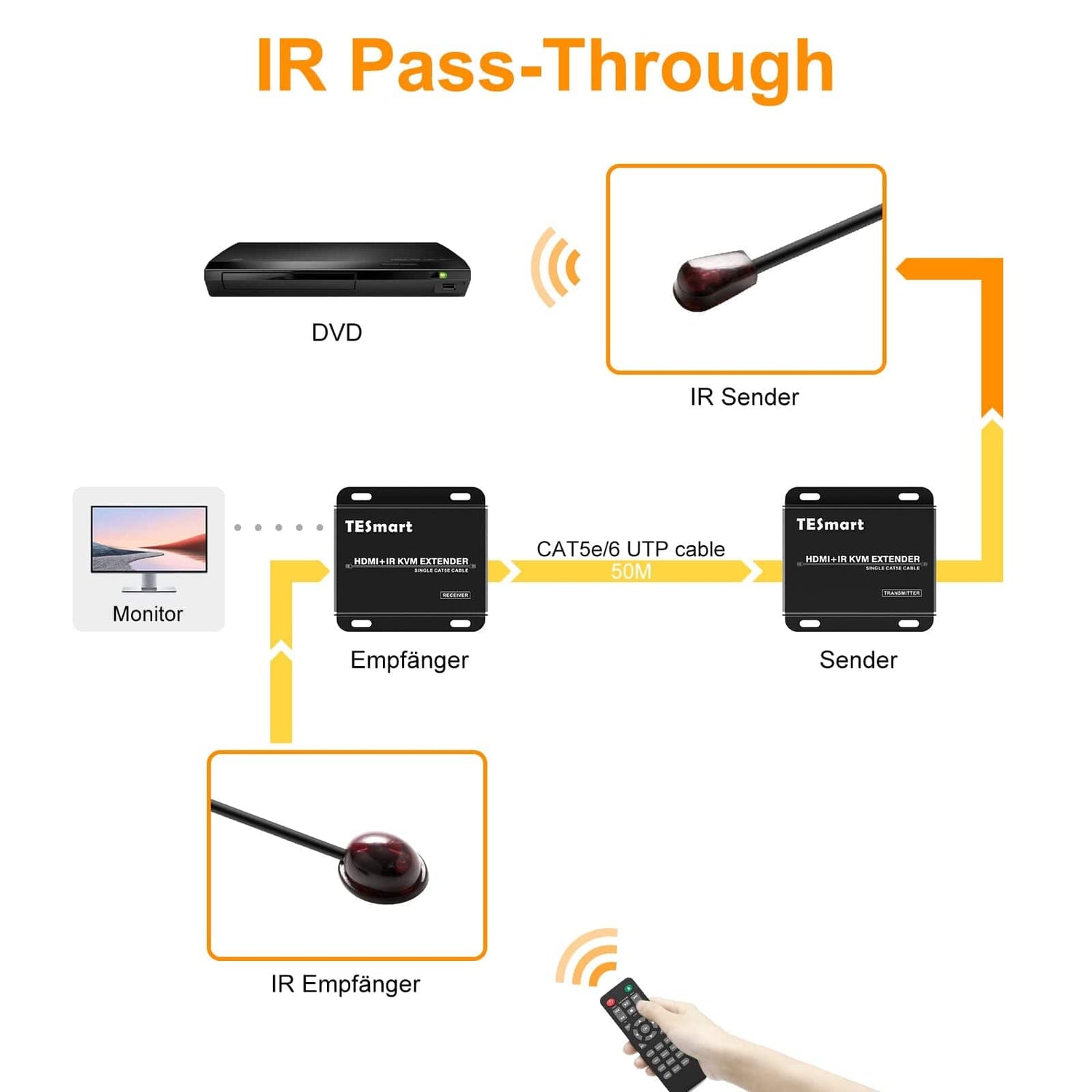

    • With IR pass though, the playback device can be remotely controlled at the receiving end via LAN.
    • Support TMDS equalization and enhancement.

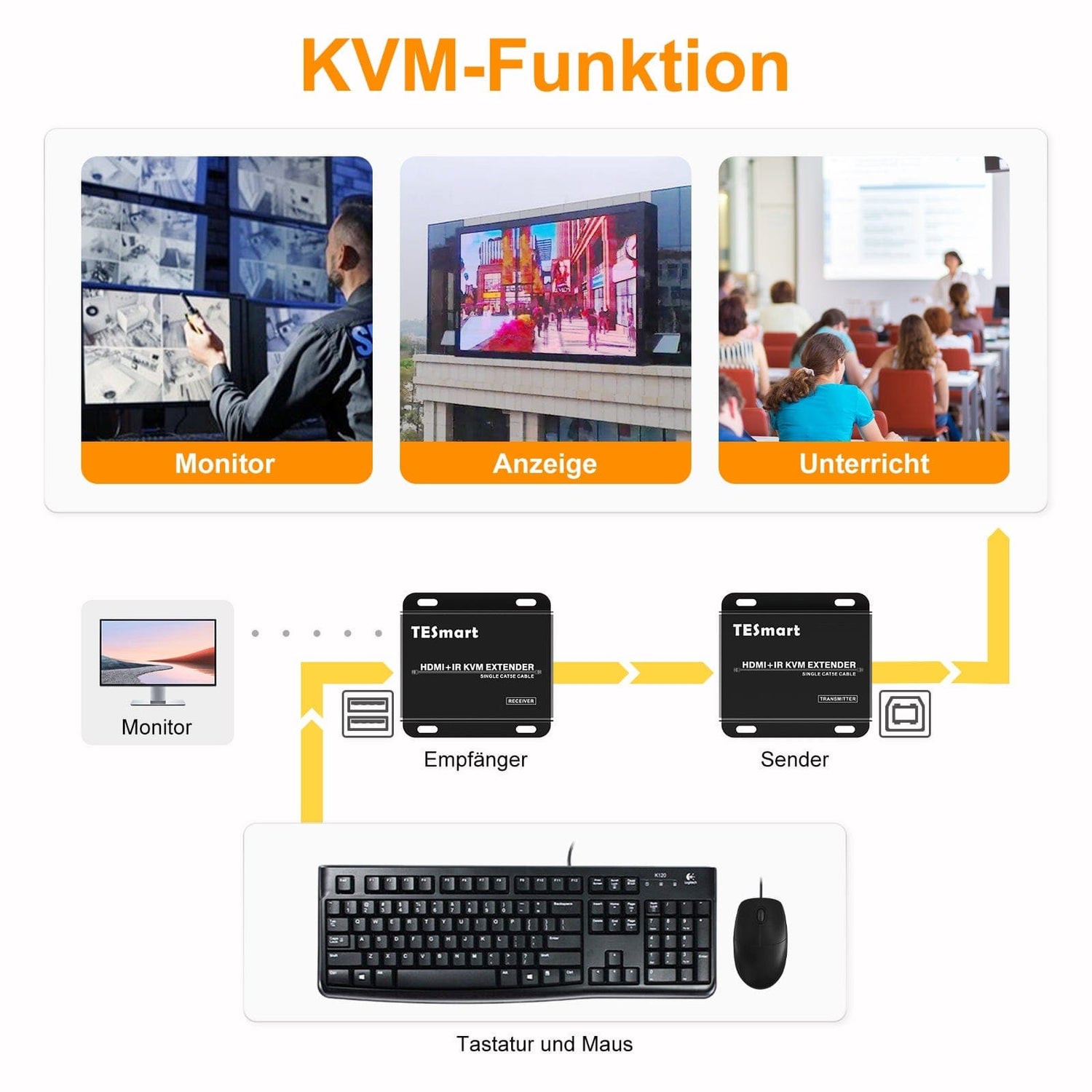

    • By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely.
    • Support 8KV ESD protection.
    Safety Measures
    • Please use 5V power supply for product installation. Using the wrong power supply can cause damage to the product and even to your equipment.
    • Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
    • If product has an exposed circuit board, do not touch the product under power.
